Main transmission adopts SRD or servo system,wide range of stepless speed change of table's movement satisfies the requirements of planing/milling/grinding at different speed,independent spindle feeding box enables more balanced feeding to process plane/inclined plane/T slot/combined guideway/rack,etc.
1.More stable table movement.
2.To get enough lubrication of table at any speed with independent lubrication system.
3.The adoption of heat-treatment techniques like drawing the temper off/quiver-ageing/hyperacoustic quenching on key parts as the machine body/column enables more stable accuracy and longer working life.
4.Machine body/column/beam/table are designed according to the parameters of heavy-duty machines,and the material is cast iron(≥HT250),so the machine is with better stability&accuracy retentivity.
|
Specifications |

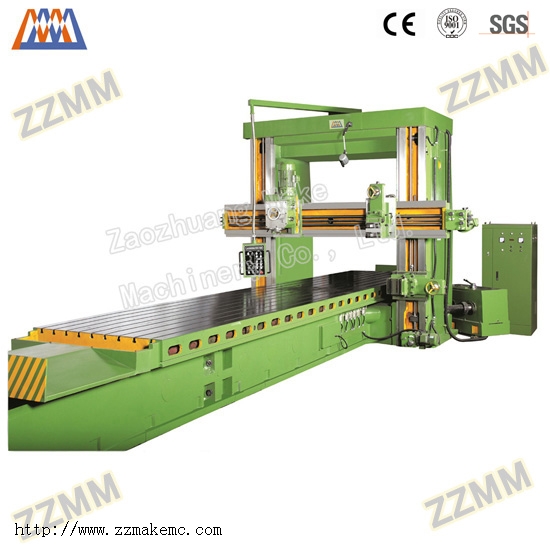

BXM20 series Super Heavy Planer Milling Machines |
||||||||||||
|
BXM 2016A |
BXM 2016B |
BXM 2016C |
BXM 2016D |
BXM 220A |
BXM 220B |
BXM 220C |
BXM 220D |
BXM 220E |
|||||
|
Max.workpiece dimensions |
Length mm |
3000 |
4000 |
6000 |
8000 |
4000 |
6000 |
8000 |
10000 |
12000 |
|||
|
Width mm |
1600 |
1600 |
1600 |
1600 |
2000 |
2000 |
2000 |
2000 |
2000 |
||||
|
Height mm |
1200 |
1200 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
||||
|
Max.workpiece weight kg |
6000 |
8000 |
10000 |
12000 |
10000 |
12000 |
14000 |
16000 |
18000 |
||||
|
Table motor power kw |
22 |
22 |
30 |
37 |
30 |
30 |
37 |
37 |
45 |
||||
|
Table |
Length mm |
3000 |
4000 |
6000 |
8000 |
4000 |
6000 |
8000 |
10000 |
12000 |
|||
|
Width mm |
1200 |
1200 |
1200 |
1200 |
1600 |
1600 |
1600 |
1600 |
1600 |
||||
|
Max.pull of rack |
88000(N) |
||||||||||||
|
Feeding speed m/min |
0.08-30(Stepless) |
||||||||||||
|
Distance between columns mm |
1620 |
1620 |
1620 |
1620 |
2020 |
2020 |
2020 |
2020 |
2020 |
||||
|
Feeding rate of vertical tool rest |
Horizontal mm |
0.2-20(Stepless) |
|||||||||||
|
Vertical mm |
0.2-20(Stepless) |
||||||||||||
|
Feeding rate of side tool rest mm |
0.2-6(Stepless) |
||||||||||||
|
Beam up/down speed mm/min |
360 |
||||||||||||
|
Max.sectional area of planing arbor mm |
40 x 40 |
60 x 60 |
|||||||||||
|
External dimensions |
Length mm |
6700 |
8700 |
12700 |
16700 |
8700 |
12700 |
16700 |
20700 |
24700 |
|||
|
Width mm |
3900 |
3900 |
3900 |
3900 |
4300 |
4300 |
4300 |
4300 |
4300 |
||||
|
Height mm |
3200 |
3200 |
3500 |
3500 |
3500 |
3500 |
3500 |
3500 |
3500 |
||||
